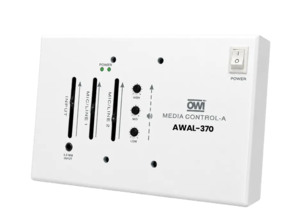

AWAL-370 - 60 WATT AMPLIFIER MIXER - 3 SOURCE * 70 VOLT

Time-Saving Advantages

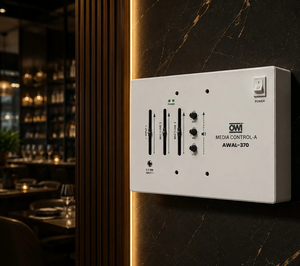

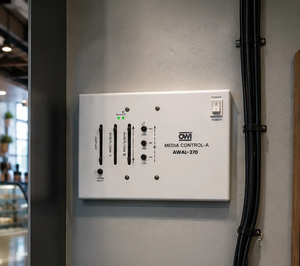

• ·Mounting - Mounts flush to a wall box to eliminate rack assembly.
  • Direct to drywall
  • Direct onto block or cement walls
  • Gang-Box Mounting: double of 4 gang box for prewiring options
• Slide Faders: Provides instant front-panel volume visibility for faster audio adjustments.
• Plug-and-Play: Combines mixing and power amplification to speed up installation.
• Quick Diagnostics: Offers accessible layout adjustments without opening equipment closets.

Money-Saving Economic Benefits

• No Outboard Racks: Eliminates expensive equipment shelves, enclosures, and hardware cabinets.
• Reduced Cable Costs: Leverages a 70V output to allow long, thin wire runs.
• Low-Voltage Power: Lowers electricity consumption while bypassing costly conduit requirements.
• Fewer Components: Combines discrete mixer, pre-amp, and amp units into one purchase.

Technical Specifications Quick View

• Power Requirements: 24 volts low voltage
• Power Output: 60 Watts total.
• Line Voltage: 70-Volt commercial system.
• Audio Inputs: 2 Microphone/Line and 2 Mini-Jack options.
• Tone EQ: Dedicated rotary midrange, treble and bass adjustors.
• Gain Control levels: Set your slider maximum gain level to prevent someone from overpowering the system.

OWI’S SX SERIES – AVAILABLE NOW

The OWI SX Series surface mount speakers feature an innovative quick-install wired bracket system. Only the bracket is wired, and the speaker automatically connects and snaps securely into place, making installation, size swapping, and horizontal or vertical mounting as easy as a snap

Key Features

• Innovative Mounting: Uses a fast-install, pre-wired quick bracket that allows you to wire the bracket first, then snap the speaker on vertically or horizontally without touching wires.
• Dual Operation: Includes a built-in selectable switch to easily alternate between a 70-volt distributed system and an 8-ohm configuration.
• Weatherized Design: Features a rugged plastic housing and a weatherized aluminum grille, making them safe for outdoor environments.
• Power Handling: Delivers up to 100W maximum power at 8 ohms.
