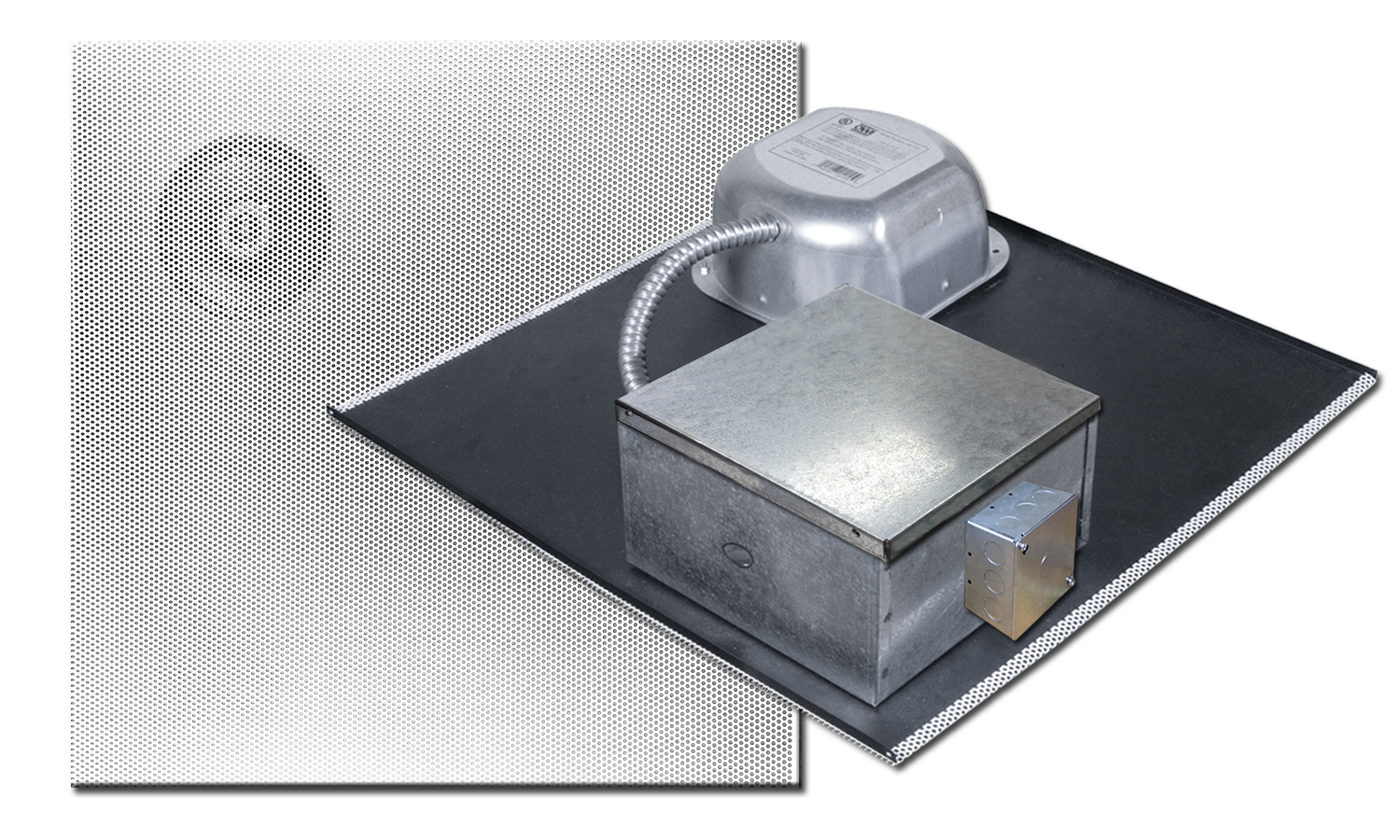

The 2X2PB-HD2S6 is a (3) Source Integratable amplified ceiling speaker on a 2X2 full grill panel with a separate 11"x11"x6" Plenum Box for power and space for alternate items inside the plenum box. The amplifier has an electronic shunt to help conform to life safety NFPA72 regulations to be able to shut off from a central locations in the event of an emergency.
The new amplifier has 3 sources; 1) one stereo 3.5 mini jack line input, 2) one POP aux input, and 3) one CAT 5 input for connection to the OWI MC4 mixer. (If 25/70/100 volt is required then a transformer will be required and supplied).
The perfect audio partners for projectors, microphones, music and paging applications. By placing the amplifier within inches of the speaker, maximum damping control of the speaker due to low source impedance is achieved. The result is optimum high fidelity reproduction and response without an external amplifier. With up to 40 watts of class AB power delivered directly to the speaker, OWI's self-amplified speakers are powerful enough to drive three additional non-amplified speakers. This flexibility is designed to provide multiple applications for different markets with a single product.
2X2PB-HD2S61 - 1 speaker package
2X2PB-HD2S62 - 2 speaker package
2X2PB-HD2S64 - 4 speaker package
