More Product Pictures

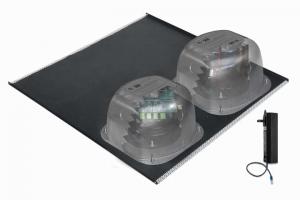

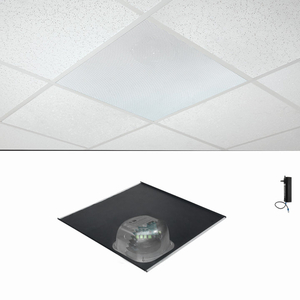

AMPLIFIED Three Source, 6", Integratable Amplified Drop In Ceiling Speakers on a 2X2 FULL GRILL with a Plenum Box (Limited Quantities)

Vendor: OWI

Qty: 2X2FG-HDER3S61 One Speaker Combo and Full Grill $909.99
Qty: 2X2FG-HDER3S64 Four Speaker Combo and Full Grill $1657.99
Qty: 2X2FG-HDER3S62 Two Speaker Combo and Full Grill $1159.99

Please, enter quantity for at least one product

Quantity unavailable. Try selecting a smaller quantity.

Features:

FULL GRILL 2X2 SPEAKER
Plenum box
NFPA72 ready with built in electronic shunt
Integrates with life safety
Works with talkback paging
Built onto the OWI IC6 In-Ceiling Speakers
UL Listed
1 - 3.5 stereo Mini-jack input
With Built-in Stereo Combiner
1 Balanced Line Level Input (Priority input)
With Priority Override Feature
1 CAT5 Input
Up to 40 Watts of Power - right at the speaker
Balanced Line level Output
Available in models with Bluetooth Volume control option
15 Volt DC power supply (UL Listed-Level 5) included
Protected from shorts and overheating
Lower Noise Feature
Fast and easy - install in the field
Stereo/mono volume controls available
Bluetooth Volume Control available
Available in 1, 2 and 4 speaker packages

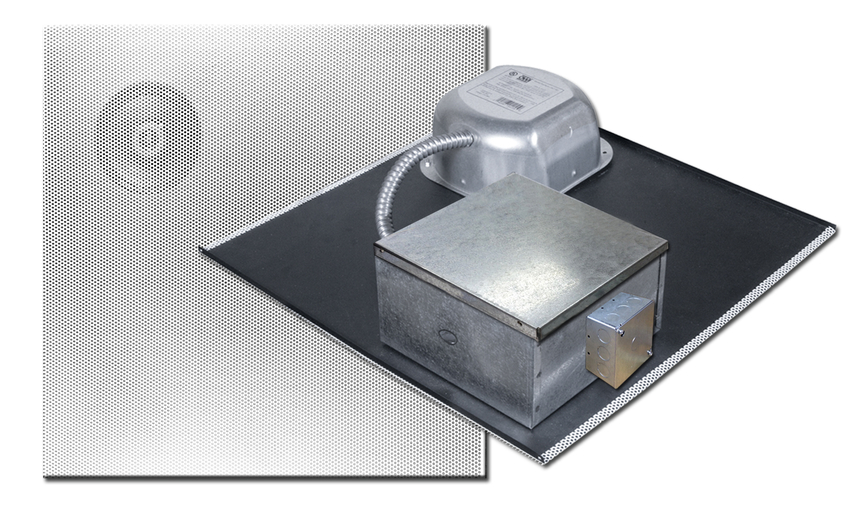

(Limited Quantities)The 2X2PB-HD2S6 is a (3) Source Integratable amplified ceiling speaker on a 2X2 full grill panel with a separate 11"x11"x6" Plenum Box for power and space for alternate items inside the plenum box. The amplifier has an electronic shunt to help conform to life safety NFPA72 regulations to be able to shut off from a central locations in the event of an emergency.

The new amplifier has 3 sources; 1) one stereo 3.5 mini jack line input, 2) one POP aux input, and 3) one CAT 5 input for connection to the OWI MC4 mixer. (If 25/70/100 volt is required then a transformer will be required and supplied).

The perfect audio partners for projectors, microphones, music and paging applications. By placing the amplifier within inches of the speaker, maximum damping control of the speaker due to low source impedance is achieved. The result is optimum high fidelity reproduction and response without an external amplifier. With up to 40 watts of class AB power delivered directly to the speaker, OWI's self-amplified speakers are powerful enough to drive three additional non-amplified speakers. This flexibility is designed to provide multiple applications for different markets with a single product.

Packages below...

2X2PB-HD2S61 - 1 speaker package

2X2PB-HD2S62 - 2 speaker package

2X2PB-HD2S64 - 4 speaker package
