How to Choose the Right Pendant Speaker for High Ceilings & Open Spaces

Have you ever walked into a lobby that sounded hollow or a retail floor where music only reached pockets of customers?

Poor sound design kills ambience, confuses staff, and reduces dwell time. For high ceilings and open-plan spaces, the right speaker turns chaos into clarity.

This post shows you how to pick one that fits height, coverage, and power needs. You'll get practical rules, quick formulas, and real case examples.

Why do pendant speakers matter now?

High ceilings create two problems.

• Sound dissipates quickly.
• Standard ceiling speakers often point the wrong way.

For these spaces, a pendant speaker brings the transducer closer to listeners. It centralizes sound. It reduces reflections. It preserves clarity. Therefore, it's the logical choice for lobbies, retail stores, atriums, restaurants, and transit hubs.

A speaker hangs down from the ceiling. It usually offers wide dispersion. Many models provide 360-degree sound or 180-degree horizontal patterns.

In commercial settings, speakers come in 8 ohm and 70V/8Ω combination models. They match different amplifier setups. They also pair with subwoofers, tweeters, and midrange drivers to tailor the sonic fingerprint.

Rules of thumb for spacing, overlap, and sound balance

Here are simple, expert rules you can use on a site survey. Use them as a baseline, then refine with measurement.

• Spacing formula (rule of thumb):
  Spacing ≈ Mounting Height × 1.2
  (If mounting height = 12 ft → spacing ≈ 14–15 ft. Metric: height 3.7 m → spacing ≈ 4.4 m.)

• Coverage overlap: Aim for 10–20% overlap between adjacent speaker coverage circles. This prevents weak spots.

• SPL drop reminder: Sound level falls roughly 6 dB when you double the distance. Design zones with that in mind.

• Power headroom: Choose amplification so each speaker has 2× to 4× the nominal power available. That avoids clipping and distortion in busy hours.

• Listener target: For background music, aim for 60–70 dB SPL at peak service areas. For announcements, increase to 75–85 dB for clarity.

Mounting distance

Mount the speaker so the driver sits roughly at the ear-line zone for seated or standing customers when possible. If you can't, prioritize even coverage over perfect aiming. Use aircraft cable and rated anchors. Add safety chains for public spaces. When targeting zones, rotate pendants slightly to tune the sweet spot.

For open ceilings with HVAC ducts and reflective beams, introduce acoustic treatments where sound rings. Use textured surfaces or single-point absorbers to tame flare. Also, choose models rated for humidity if the space is near kitchens or coastal air.

Match speaker sensitivity to amplifier output. A sensitive speaker (e.g., 90 dB @1W/1m) will need less amplifier power than a low-sensitivity model. For distributed systems, use 70V transformers for long cable runs. For foreground music or high SPL zones, use direct 8Ω wiring and dedicated amplification per zone. Always add 20–30% headroom to avoid clipping.

Technical Factors That Matter More Than You Think

When selecting a speaker, focus on three technical points that directly affect audio quality:

1. Mounting Distance:
Hang your speaker close enough to listeners but high enough for aesthetics, ideally 70% of ceiling height.

2. Power Handling & Impedance:
Use 70-volt systems for commercial spaces. They allow longer cable runs without signal loss and let you connect multiple speakers in parallel.

3. Coverage Angle:
Match dispersion to your room type: wide for ambient music, narrower for focused zones like checkout counters.

Installation Tips You Can't Skip

Installing speakers is simple, but precision matters:

• Cable Suspension: Use a secure steel signal cable connected to a ceiling hook.
• Height Calibration: Maintain equal hanging lengths to prevent uneven sound.
• Spacing Consistency: Stick to your calculated overlap for uniform coverage.
• Zone Planning: Split large rooms into zones so you can control volume independently.

Choose finishes that match the interior design. Many models come in black, white, or custom colours. You can hide wiring in decorative sleeves.

For retail and hospitality, this dual purpose often justifies a slightly higher unit cost. Remember: a design that looks intentional improves perceived quality. That, in turn, raises guest satisfaction.

Final checklist

• Measure height and footprint.

• Use the spacing formula.

• Decide 70V vs 8Ω based on cable runs.

• Confirm humidity rating if needed.

• Plan for 10–20% overlap.

• Add 2×–4× amp headroom.

• Test with the measurement mic before final sign-off.

Why OWI's Pendant Speakers Stand Out

OWI's Pendant Speakers are engineered precisely for spaces like stores, atriums, lobbies, sports centers, transportation hubs, and open retail designs. These models offer 360-degree sound and 180-degree dispersion, providing dynamic, wide-area coverage with fewer speakers.

Using the rules of thumb described above, OWI speaker can double and perhaps triple the space between speakers to achieve the same coverage resulting in purchasing and using half as many speakers as traditional pendant speakers. OWI has many examples of projects where ahlof as many speakers and sometimes even less than that have been used to cover spaces. This not represents a cost savings in speakers but the amplifiers required to power them as well.

You can match each model to your space's needs with different tweeter, woofer, bass, and midrange configurations, ensuring precision and clarity in every zone. OWI's systems also support 8-ohm and 70-volt combinations, making them versatile for both residential and commercial audio systems

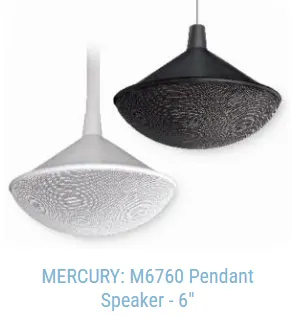

Here's a quick look at some of OWI's bestselling models:

Every unit is designed for long-term durability and simple installation, perfect for architects, designers, and business owners who care about both sound and style.

Wrap up

If your space has tall ceilings or a large open plan, a pendant speaker is often the best choice. It fixes uneven coverage and improves clarity. Use the spacing formula and the checklist above.

Contact us to schedule a site visit. We'll make your space sound right and make every corner count!
